AZ150 55% Al-Zn Alloy Aluzinc Steel Coil for Industrial Building and Roofing
Aluzinc steel coils are produced with 55% Al-Zn coating steel coil for roofing projects. Witop ensures reliable export supply.
AZ150 Aluzinc steel coil for roofing, wall cladding, sandwich panels and industrial building applications. Also known as AZ150 aluzinc coil, AZ150 galvalume steel coil or AZ150 aluminum zinc coated steel coil, this material features a 150 g/mยฒ aluminum-zinc coating designed for demanding outdoor and industrial applications.
Superior Corrosion Resistance; Excellent Heat Reflectivity; Stable AZ Coating Control;Lightweight & Durable Structure; Reliable Export Support
Hot Dip Aluzinc Steel Coil
| Standard | JISย G3321,ย ENย 10346,ย ASTMย 792 |
| Grade | SGLCC,SGLCH,SGLCDL, SGLC -340,400,440,490,570 |
| DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD, S450GD, S550GD | |
| CS Type A,B,Cย FS; Type A,B; DDS, EDDS; SS Grade 33,37,40,50,80 | |
| Alu-zinc Composition | 55%ย Aluminum, 43.5% Zinc,1.5% Silicon |
| Alu-zincย Coating | AZ 40-150G/M2 |
| Surfaceย Treatment | Chromatedย Passivation, Oiled,ย No-oiled, Anti-Finger Print |
| Hardness | Softy, Semi Hard, Full Hard, Drawing,Deep Drawing, Structural |
| Thickness | 0.12-4.00MM |
| Width | 600-1500MM |
| Coilย Weight | 3-5MT/Coilย orย Customized |
| Coil Inner Diameter | 508MM or 610MM |
| Package | Standard Seaworthyย Exportingย Packing |
| MOQ | 25MT |
| Capacity | 7000MT/Month |
| Transportย Type | Vessel Container, Vessel Bulk, Railway Container, Railway Wagon |
| Loadingย Port | Tianjin,ย Qingdao, Ningbo, Shanghai and other port |
| Deliveryย Time | 15-25ย Daysย Afterย Receiving the Deposit |
| Terms of Trade | EXW,FOB,ย CFR,ย CIF |
| Terms of Payment | TT and Irrevocable LC at Sight |
AZ150 Aluzinc Coil Description
Aluzinc Steel Coil Description highlights 55% Al-Zn alloy coated steel engineered for superior corrosion protection and heat reflectivity.
As a reliable manufacturer and export supplier, we offer AZ30โAZ150 coating options with controlled thickness tolerance and stable surface quality. Compared with galvanized steel coil, aluzinc steel performs better in coastal and high-humidity environments.
Suitable for roofing systems, warehouses and industrial buildings, this product supports distributors and project contractors seeking long service life and reduced replacement risk. Bulk production and customized specifications are supported.
AZ150 VS AZ100 Aluzinc Steel Coil
| Specification | AZ100 | AZ150 |
|---|---|---|
| Coating mass | 100 g/mยฒ | 150 g/mยฒ |
| Aluzinc coating | Al-Zn | Al-Zn |
| Corrosion protection | Standard | Higher |
| Outdoor applications | โ | โ |
| Roofing | โ | โ |
| Industrial buildings | โ | โ |
| Higher durability requirement | โณ | โ |
Aluzinc Steel Coil Applications
Aluzinc steel coil is mainly used in high-corrosion and high-temperature environments, where durability is critical.

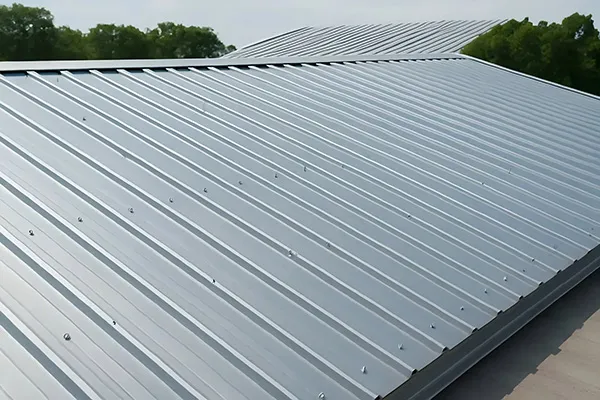

Coastal Roofing Systems
Ideal for seaside projects due to superior corrosion resistance.
Industrial Warehouses
Used for long-span roofing panels requiring extended service life.
Agricultural Buildings
Suitable for humid farm environments and livestock facilities.
Solar Panel Mounting Structures
Heat-reflective surface improves temperature performance.
High-Temperature Industrial Facilities
Aluzinc Steel Coil Proces Work Flow
1. Pay Off
2. Welder
3. Entry Looper
4. Annealing Furnace
5.Zinc Pot / Aluzinc Pot
6. Spangle and Alloying Equipment
8. Coating Weight Control
9. Air Cooling
10. Coating Weight Measurement
11. Water Cooling
12. Skinpass Mill
13. Tension Leveler
14. Chemical Treatment
15. Delivery Looper
16. Surface Inspection
17. Oiler
18. Tension Reel
Packing Details Standard export package
3 layers of packing, inner side is anti-water craft paper, PVC plastic film is the middle and outer side covered by at least 0.45mm thick steel sheet,wrapped by minimum seven steel strapping strips with lock catch.
In particular, WITOP steel places desiccant on the coil inner core side and on both lateral sides of the coil for bulk transportation to ensure that coils are delivered to clients in good condition.
Package can be customized as client’s requirements.
Hot Dip Galvanized Steel Coil
| Hot Dip Galvanized Steel Coil | |||||
| GB T 2518 | JIS G 3321 | ASTM A792 | EN10346 | Application | |
| Specifications | DX51D | SGLCCใSGLHC | CS Type C | DX51D | Commercial |
| DX52D | SGLCD | CS Type A ใCS Type B | DX52D | Commercial Hard | |
| DX53D | SGLCDD | FS Type AใFS Type B | DX53D | Drawing, Class 1 | |
| DX54D | โ | DDS Type C | DX54D | Drawing, Class 2 | |
| DX56D | โ | DDS Type A | DX56D | Drawing, Class 3 | |
| DX57D | โ | EDDS | DX57D | Drawing, Class 4 | |
| S220GD | โ | SS230 [SS33] | S220GD | Structural Quality | |
| S250GD | โ | SS255 [SS37] | S250GD | ||
| S280GD | SGLC400 | SS275 [SS40] | S280GD | ||
| S320GD | โ | โ | S320GD | ||
| S350GD | SGLC440 | SS340 [SS50] class 4 | S350GD | ||
| S550GD | SGLC570 | SS550 [SS80] class 2 | S550GD | ||
| Coating Mass | AZ30~Z200 | AZ30~Z200 | AZ30~Z210 | AZ30~Z185 | โ |
| Surface Finish | Regular Spangle/ Minimized Spangle | ||||
| Surface Treatment | Chromating, Oiled, Skin-pass or Green Treatment | ||||
| Remarks | 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification. | ||||
| 2. All products with thickness 2.0mm and under can be skin passed. | |||||
| 3. The coil inside diameter can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm. | |||||
| 4. Please make inquiries to our Sales & Marketing Division for products with special specifications. | |||||
| 5. Coating mass beyond the specifications above can be provided by Witop Steel. upon mutual agreement between customers and us. |
|||||
FAQ โ Aluzinc Steel Coil
Aluzinc steel coil is a cold-rolled steel coil coated with an aluminum-zinc alloy layer through a hot-dip process. The coating typically contains 55% aluminum, 43.4% zinc, and 1.6% silicon, providing excellent corrosion resistance and heat reflectivity.
Aluzinc steel coil is widely used in:
-
Roofing sheet manufacturing
-
Wall cladding systems
-
Sandwich panel production
-
Industrial buildings and warehouses
-
Agricultural structures
-
Steel structures and construction components
-
HVAC ducts and ventilation systems
It is commonly used in long-life roofing and construction materials.
-
Galvanized Steel (GI): Zinc coating, lower cost, good corrosion resistance.
-
Aluzinc Steel (GL): Aluminum + Zinc alloy coating, higher corrosion resistance and heat reflectivity.
Aluzinc steel can last 2โ4 times longer than galvanized steel in certain environments.
Common coating weights include:
-
AZ30: Indoor applications
-
AZ50: General construction
-
AZ100: Standard roofing
-
AZ150: High corrosion resistance
AZ150 is the most widely used coating for roofing sheet production.
Typical thickness range:
-
0.12 โ 0.25 mm: Roofing sheet manufacturing
-
0.30 โ 0.50 mm: Industrial roofing and cladding
-
0.50 โ 1.0 mm: Structural panels
-
1.0 โ 2.0 mm: Industrial fabrication
Custom thickness can be produced according to customer requirements.
Common coil widths include:
-
914 mm: Roofing sheet production
-
1000 mm: General sheet processing
-
1200 mm: Panel manufacturing
-
1250 mm: Construction applications
Custom slitting widths are also available.
Aluzinc steel is widely used for roofing because it provides:
-
Superior corrosion resistance
-
Excellent heat reflection
-
Long service life
-
High durability in harsh environments
-
Lower maintenance costs
Yes. Aluzinc steel coil is commonly used as the base material for PPGL (Pre-painted Galvalume Steel Coil). After cleaning and chemical treatment, the coil is coated with paint to produce color coated steel for roofing and wall panels.
Service life depends on coating weight and environment. Typical lifespan:
-
Rural environment: 25โ40 years
-
Industrial environment: 20โ30 years
-
Coastal areas: 15โ25 years
Higher coating weights provide better corrosion protection.
Common surface types include:
-
Regular spangle
-
Anti-fingerprint coating
-
Chromated surface
-
Oiled surface
-
Dry surface
Anti-fingerprint coating is often used for construction and decorative applications.
Major buyers include:
-
Roofing sheet manufacturers
-
Sandwich panel manufacturers
-
Steel distributors and wholesalers
-
Construction material suppliers
-
Industrial fabrication plants
Bulk orders usually range from 20 to 200 tons per order.
Common international standards include:
-
ASTM A792 / A792M
-
EN 10346
-
JIS G3321
-
GB/T 14978
These standards specify coating weight, mechanical properties, and tolerances.
Common coil weights include:
-
3 โ 5 metric tons (for roofing sheet manufacturers)
-
5 โ 8 metric tons (for large industrial production lines)
Coil weight can be customized depending on equipment capacity and handling conditions.
Standard export packaging includes:
-
Waterproof paper protection
-
Plastic film covering
-
Galvanized steel outer sheet
-
Steel strapping
-
Wooden pallets or skids
Key factors include:
-
Stable aluminum-zinc coating quality
-
Accurate thickness tolerance
-
Consistent coil weight
-
Reliable export packaging
-
Strong manufacturing capacity
-
Stable bulk supply
