AZ150 Narrow Width Aluzinc Steel Strip for Industrial Products
Aluzinc steel strip features superior corrosion resistance for coastal tube manufacturing. Witop supports stable export supply.
Precise Slitting & Narrow Width Control; Excellent Heat Reflectivity;
Stable Coating Adhesion; Reliable Bulk Supply Support
Hot Dip Galvalume Steel Strip
| Standard | JISย G3321,ย ENย 10346,ย ASTMย 792 |
| Grade | SGLCC,SGLCH,SGLCDL, SGLC -340,400,440,490,570 |
| DX51D, DX52D, DX53D, DX54D, S220GD, S250GD, S280GD, S320GD, S350GD, S450GD, S550GD | |
| CS Type A,B,Cย FS; Type A,B; DDS, EDDS; SS Grade 33,37,40,50,80 | |
| Alu-zinc Composition | 55%ย Aluminum, 43.5% Zinc,1.5% Silicon |
| Alu-zincย Coating | AZ 40-150G/M2 |
| Surfaceย Treatment | Chromatedย Passivation, Oiled,ย No-oiled, Anti-Finger Print |
| Hardness | Softy, Semi Hard, Full Hard, Drawing,Deep Drawing, Structural |
| Thickness | 0.14-2.00MM |
| Width | 20-599MM |
| Coilย Weight | 3-5MT/Coilย orย Customized |
| Coil Inner Diameter | 508MM or 610MM |
| Package | Standard Seaworthyย Exportingย Packing |
| MOQ | 25MT |
| Capacity | 7000MT/Month |
| Transportย Type | Vessel Container, Vessel Bulk, Railway Container, Railway Wagon |
| Loadingย Port | Tianjin,ย Qingdao, Ningbo, Shanghai and other port |
| Deliveryย Time | 15-25ย Daysย Afterย Receiving the Deposit |
| Terms of Trade | EXW,FOB,ย CFR,ย CIF |
| Terms of Payment | TT and Irrevocable LC at Sight |
AZ150 Aluzinc Steel Strip Description
Aluzinc Steel Strip Description highlights narrow-width AZ coated steel designed for superior corrosion resistance in tubing and profiling applications. As a professional manufacturer and bulk supplier, we provide strips with AZ30โAZ150 coating, precise slitting tolerance and thickness from 0.14โ2.0mm.
Compared with <a href=”/galvanized-steel-strip”>galvanized steel strip</a>, aluzinc strip offers longer service life in coastal and high-humidity environments. Widely used by pipe makers, framing manufacturers and distributors, our Aluzinc steel strip helps reduce maintenance costs, improve processing efficiency and ensure stable long-term supply for industrial projects.
AZ150 Aluzinc Strip Applications
Coastal ERW Pipe Manufacturing
Aluzinc steel strip is widely used in electric resistance welded (ERW) pipe production for coastal and humid regions. The 55% Al-Zn coating provides longer corrosion resistance compared with traditional galvanized strip, making it suitable for water pipes, scaffolding tubes and structural piping near seaside environments.
Agricultural Greenhouse Structures
Due to its superior anti-rust performance, Aluzinc strip is applied in greenhouse frames and agricultural support systems exposed to moisture and chemical fertilizers.

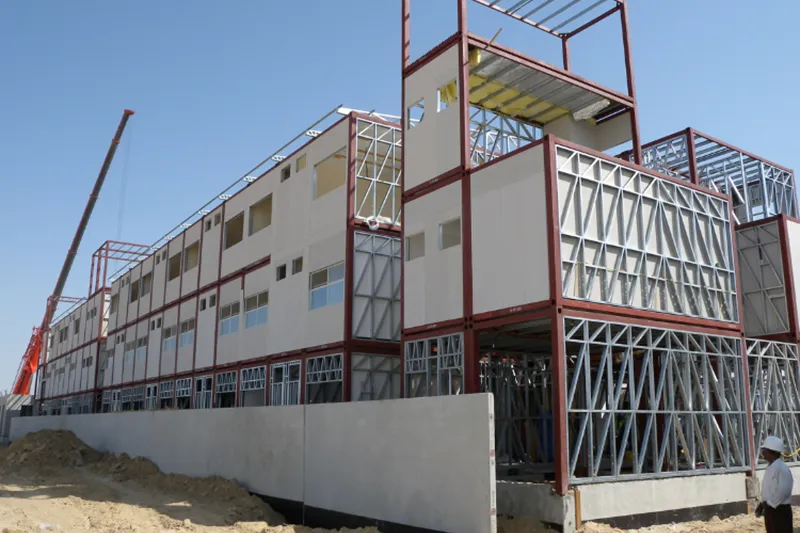

Light Steel Framing & Profiling
The precise slitting tolerance makes Aluzinc steel strip ideal for producing C-channels, tracks and lightweight structural profiles used in prefabricated buildings.
Solar Mounting & Outdoor Brackets
The aluminum-rich coating offers good heat reflectivity and durability, suitable for solar panel mounting systems and outdoor support brackets.
Industrial Equipment Components
Aluzinc strip is used in machinery covers and metal framing where extended service life and reduced maintenance are required.

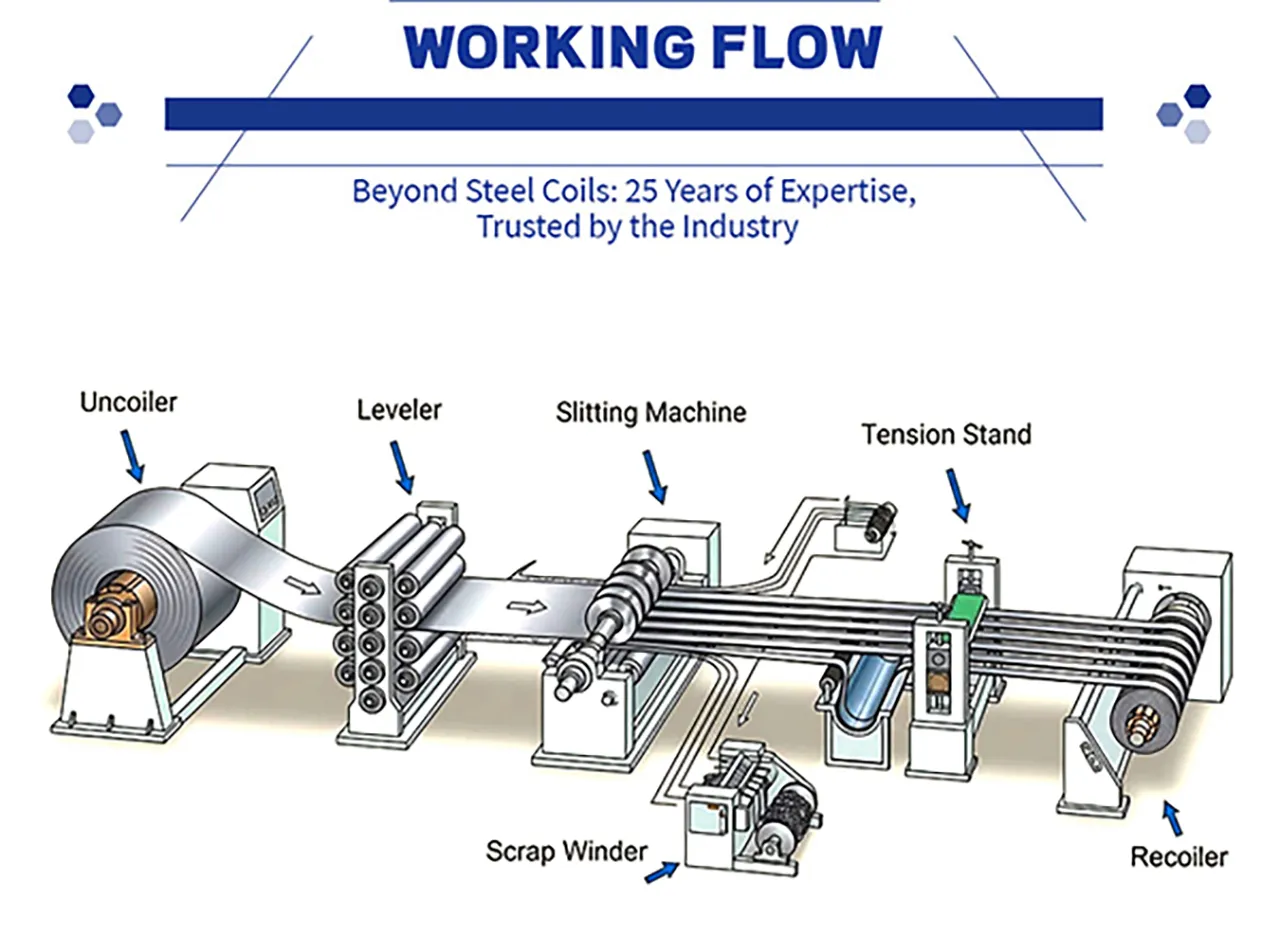

Aluzinc Steel Strip Workflow
Uncoiler Leveler Slitting Machine Scrap Winder Tension Stand Recoiler
Packing Details Standard export package
3 layers of packing, inner side is anti-water craft paper, PVC plastic film is the middle and outer side covered by at least 0.45mm thick steel sheet,wrapped by minimum seven steel strapping strips with lock catch.
In particular, WITOP steel places desiccant on the coil inner core side and on both lateral sides of the coil for bulk transportation to ensure that coils are delivered to clients in good condition.
Package can be customized as client’s requirements.
Hot Dip Galvanized Steel Coil
| Hot Dip Galvanized Steel Coil | |||||
| GB T 2518 | JIS G 3321 | ASTM A792 | EN10346 | Application | |
| Specifications | DX51D | SGLCCใSGLHC | CS Type C | DX51D | Commercial |
| DX52D | SGLCD | CS Type A ใCS Type B | DX52D | Commercial Hard | |
| DX53D | SGLCDD | FS Type AใFS Type B | DX53D | Drawing, Class 1 | |
| DX54D | โ | DDS Type C | DX54D | Drawing, Class 2 | |
| DX56D | โ | DDS Type A | DX56D | Drawing, Class 3 | |
| DX57D | โ | EDDS | DX57D | Drawing, Class 4 | |
| S220GD | โ | SS230 [SS33] | S220GD | Structural Quality | |
| S250GD | โ | SS255 [SS37] | S250GD | ||
| S280GD | SGLC400 | SS275 [SS40] | S280GD | ||
| S320GD | โ | โ | S320GD | ||
| S350GD | SGLC440 | SS340 [SS50] class 4 | S350GD | ||
| S550GD | SGLC570 | SS550 [SS80] class 2 | S550GD | ||
| Coating Mass | AZ30~Z200 | AZ30~Z200 | AZ30~Z210 | AZ30~Z185 | โ |
| Surface Finish | Regular Spangle/ Minimized Spangle | ||||
| Surface Treatment | Chromating, Oiled, Skin-pass or Green Treatment | ||||
| Remarks | 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification. | ||||
| 2. All products with thickness 2.0mm and under can be skin passed. | |||||
| 3. The coil inside diameter can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm. | |||||
| 4. Please make inquiries to our Sales & Marketing Division for products with special specifications. | |||||
| 5. Coating mass beyond the specifications above can be provided by Witop Steel. upon mutual agreement between customers and us. |
|||||
FAQ โ Aluzinc Steel Strip
Aluzinc steel strip is a narrow steel product made from cold-rolled steel coated with an aluminum-zinc alloy through a hot-dip process. The coating typically contains 55% aluminum, 43.4% zinc, and 1.6% silicon, providing excellent corrosion resistance and long service life.
Aluzinc steel strip is widely used in steel pipe and tube manufacturing, metal profiles and channels, cable trays and cable armoring, roofing accessories, door and window frames, electrical cabinets and enclosures, and industrial stamping and fabrication. It is commonly used in continuous forming and industrial production lines.
Aluzinc Steel Coil refers to wide steel coil used for roofing sheets and panels, whereas Aluzinc Steel Strip refers to narrow width strip used for pipe production and metal parts. Aluzinc steel strip is typically produced by slitting Aluzinc steel coils into narrower widths.
The typical thickness range includes 0.12 โ 0.30 mm for light industrial components, 0.30 โ 1.0 mm for pipe and tube production, 1.0 โ 2.0 mm for structural components, and 2.0 โ 3.0 mm for heavy-duty industrial parts. Thickness can be customized according to customer requirements.
The typical width range is 20 mm โ 600 mm. Common slitting widths include 32 mm, 50 mm, 76 mm, 100 mm, 125 mm, 150 mm, and 200 mm. Custom widths can be supplied depending on the production process.
Common coating weights include AZ30 for indoor use, AZ50 for general industrial use, AZ100 for standard outdoor use, and AZ150 for high corrosion resistance. AZ100 and AZ150 are commonly used for construction-related applications.
Galvanized Steel Strip offers a lower cost, whereas Aluzinc Steel Strip provides better corrosion resistance and heat reflection. Aluzinc steel typically offers 2โ4 times longer corrosion resistance compared to galvanized steel in many environments.
Common surface options include regular spangle, anti-fingerprint coating, chromated surface, oiled surface, and dry surface. Surface treatment can be selected based on processing and application requirements.
Yes. Aluzinc steel strip is often used in the production of round steel pipes, square and rectangular tubes, structural tubing, and fence pipes. The strip is formed and welded using pipe-making machines.
Major buyers include steel pipe manufacturers, metal profile manufacturers, roofing accessory manufacturers, cable tray producers, electrical equipment manufacturers, and steel distributors and wholesalers. Bulk buyers usually purchase large volumes for continuous production.
Common international standards include ASTM A792 / A792M, EN 10346, JIS G3321, and GB/T 14978. These standards define coating weight, mechanical properties, and tolerances.
Typical coil weights include 3 โ 5 metric tons for standard industrial processing and 5 โ 8 metric tons for large manufacturing lines. Coil weight can be customized depending on handling equipment and production requirements.
Standard export packaging includes waterproof paper protection, plastic film covering, steel outer sheet protection, steel strapping, and wooden pallets or skids. This prevents moisture damage and mechanical damage during transportation.
Yes. Aluzinc steel strip can be processed through roll forming, stamping, bending, welding, slitting, and profiling. It is widely used in automated manufacturing processes.
Key factors include stable aluminum-zinc coating quality, accurate slitting width tolerance, smooth strip edges, consistent coil weight, strong production capacity, and reliable bulk supply. Many industrial buyers prefer direct steel manufacturers with export experience.
